Navisystem Rahatlığı ?
Günter Elektronik, denizde TV ve internet problemlerini çözen Navisystem antenlerini Türkiye'ye getirdi.
Dahili GPS ve pusula içeren Navisystem, uydu bulma ve kilitlenmeyi saniyeler içinde çözüyor.Navisystem; bu özelliği ile Ferretti, Azimuth, De la Pieta, Mangusta gibi dünyaca ünlü yat üreticilerinin ilk tercihi olmayı başardı.
Navisystem, 15 metre uzunluğundaki yatlardan ticari gemilere, 44 cm. den 240 cm'e kadar. çeşitli özelliklerde TV ve V-SAT (Broadband internet) anten desteği sağlıyor.Denizde problemsiz televizyon ve internet ayrıcalığı sunan Navisystem, Günter Elektronik ile 12 yıldır Türkiye'de temsil edilmektedir. Günter Elektronik Türk kara sularında yatlara, özellikle MST 48 - 50 A 3, 60 A3, A4 ve MST 55 NT modellerini tavsiye ediyor.Türksat , Digitürk ve talep edilen diğer üçüncü bir uydudan yayınların rahatlıkla alınmasını sağlayan antenlerle, 60 knot'a kadar seyirde TV izlenebilir. Ayrıca IMKB datalarını hatasız alıyor. Daha gelişmiş bir model olan MST 65 NTX ise Thuraya uydularından 444 Kbps.veya 384 kbps çift yönlü internet ve TV imkanı sunuyor.

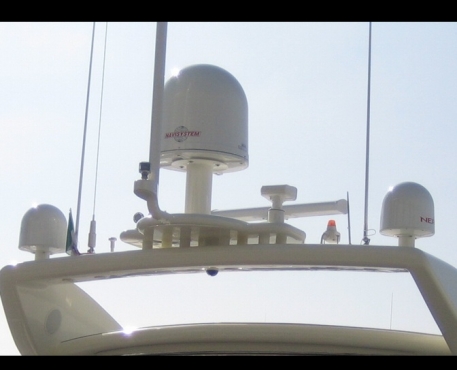

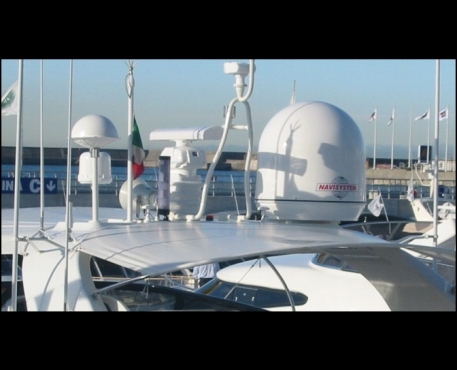

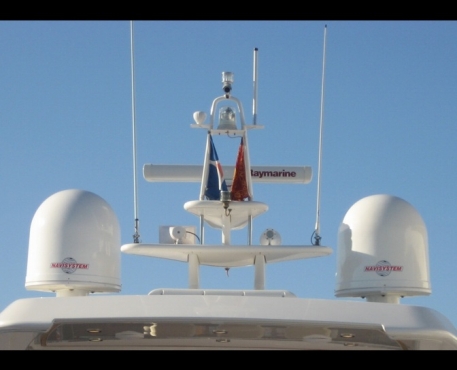

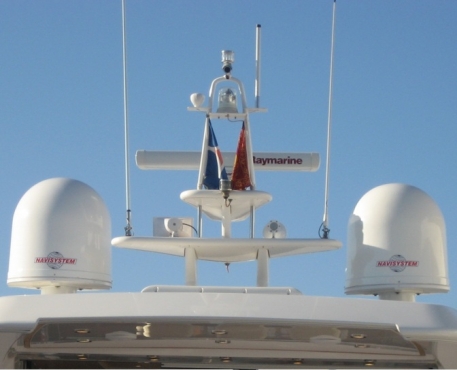

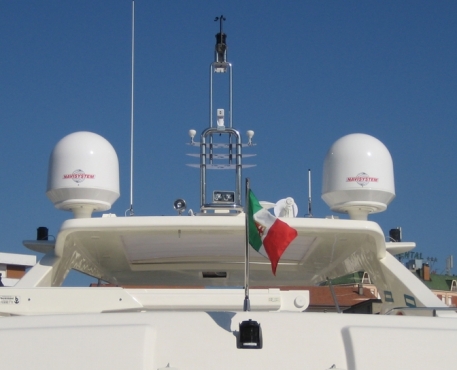

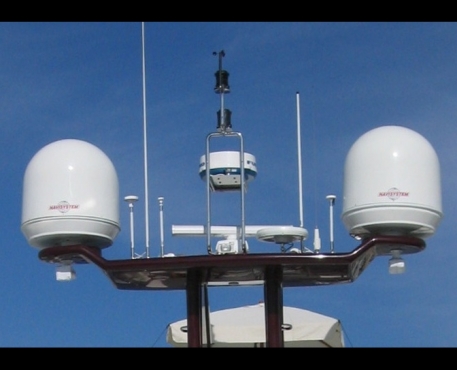

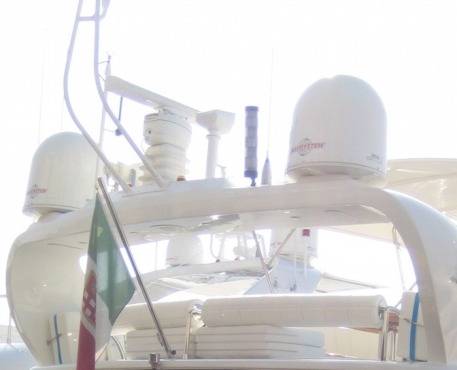

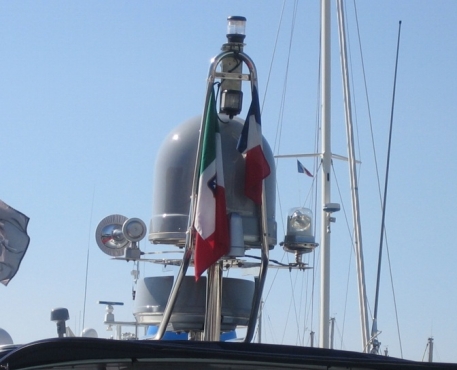

Navisystem yat ve gemi uydu antenleri ile denizciler seyir sırasında da dünyanın geri kalan kısmı ile bağlantıyı kesmemiş oluyor. 15 metreden küçük tekneler de bu teknolojiden yararlanabiliyor. Sistem, dış etkenlere kapalı, radom (koruyucu kılıf altında) çalışan, denize şartlaryna dayanıklı özel malzemelerden üretiliyor. Farklı ebatlarda yaklaşık 50 farklı özelliklere sahip seçenekleri mevcut. Sessiz çalışıyor. Antenin kendi üzerinde bulunan GPS' i ve elektronik pusulası sayesinde uyduyu bulma ve sabitlemesi kısa sürede gerçekleşiyor. Turksat 42, Eutelsat W3 (Digitürk) ve Hotbird 13 E uydularından 1000' i aşkın dijital TV kanalını ve opsiyonel olarak da çift yönlü interneti 55 knot sürate kadar olan seyirlerde sunabiliyor.
%100 Avrupa mühendisliği, işçiliği ve malzemesi ile Navisystem'in Viareggio (İtalya)'daki tesislerinde üretilmektedir.
Navisystem antenlerin eskisi olmaz !
Tüm modellerimiz (analog antenler dahil) güncel digital teknoloji ile donatarak kullanılmaya devam etmektedir. Yenisi ile değiştirilmesine gerek yoktur.
Daha fazla bilgi için bizi arayınız. Belirli zamanlarda elimizde 2.el antenler bulunmakta ve garanti kapsamında satılmaktadır.
Ürünler
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MARINE SATELLITE TELEVISION
INTERNET - METEO - VOICE - V-SAT - SYSTEMS
mod. MST or V-SAT
55 HST - 65 HST - 75 HST - 85 HST - 95 HST - 120 HST - 135 HST - 150 HST
INTERNET - METEO - VOICE - V-SAT - SYSTEMS
mod. MST or V-SAT
55 HST - 65 HST - 75 HST - 85 HST - 95 HST - 120 HST - 135 HST - 150 HST

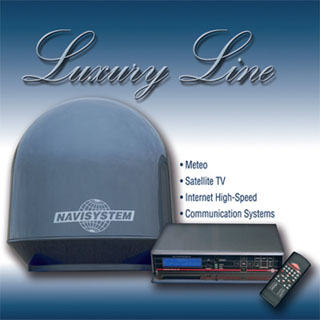

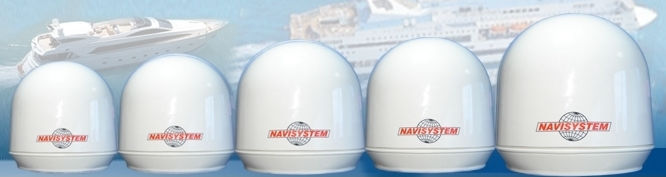

Navisystem now offers a complete line of satellite antennas dedicated exclusively to yachts, designed for those clients who demand the most in terms of technology, quality and esthetics.
The rule here is multi-function integration – and today with two Luxury Line antennas you can have access to all the following
services:
But Navisystem has also thought about the design aspect of these new antennas; in fact, they are perfectly able to fully integrate themselves with the increasingly refined esthetics found on today's modern yachts. So, add to these yachts' SAT 106 system management and the high-grade four-axis technology that meticulous attention to aesthetics that characterizes a Navisystem Luxury Line antenna and you have in effect enriched the layout of the yacht. This high level of technological development is the result of the constant research that this Italian company carries out in its own laboratories and it is for this reason that these "new arrivals" can enjoy all the benefits of smart-technology such as High-Speed Tracking (HST), making it possible to establish stable satellite links that are not affected by high speeds or inclement weather conditions at sea. All this is the results of research by a company that for years has operated exclusively in the satellite systems sector in a position of leadership among the most important international manufacturers of maritime satellite systems. Navisystem is an Italian enterprise that designs and manufactures each and every single element for its systems and this is why high-quality and aesthetic excellence go hand-in-hand in an antenna able to guarantee yacht owners communication links similar to those enjoyed on land from whatever seas their vacationing might find them sailing in.
- satellite TV reception onboard anywhere in the world, with the possibility to receive the signal in circular or linear polarization without having to replace any part of the antennas;
- high-speed Internet access 24 hours a day, with advantageous, fixed-cost, monthly rates;
- free "Voice over IP" telephone communication using, for example, the Skype platform;
- send and receive fax, e-mail, data and video even when cruising at 60 knots;
- remote video surveillance monitoring of home security system or, vice versa, monitoring of on-board security systems such as sensors and surveillance cameras directly from home;
- receive weather broadcasts at high-definition in all the Mediterranean and in all those parts of the world where the service is provided by the local authorities.
But Navisystem has also thought about the design aspect of these new antennas; in fact, they are perfectly able to fully integrate themselves with the increasingly refined esthetics found on today's modern yachts. So, add to these yachts' SAT 106 system management and the high-grade four-axis technology that meticulous attention to aesthetics that characterizes a Navisystem Luxury Line antenna and you have in effect enriched the layout of the yacht. This high level of technological development is the result of the constant research that this Italian company carries out in its own laboratories and it is for this reason that these "new arrivals" can enjoy all the benefits of smart-technology such as High-Speed Tracking (HST), making it possible to establish stable satellite links that are not affected by high speeds or inclement weather conditions at sea. All this is the results of research by a company that for years has operated exclusively in the satellite systems sector in a position of leadership among the most important international manufacturers of maritime satellite systems. Navisystem is an Italian enterprise that designs and manufactures each and every single element for its systems and this is why high-quality and aesthetic excellence go hand-in-hand in an antenna able to guarantee yacht owners communication links similar to those enjoyed on land from whatever seas their vacationing might find them sailing in.
MST55HST

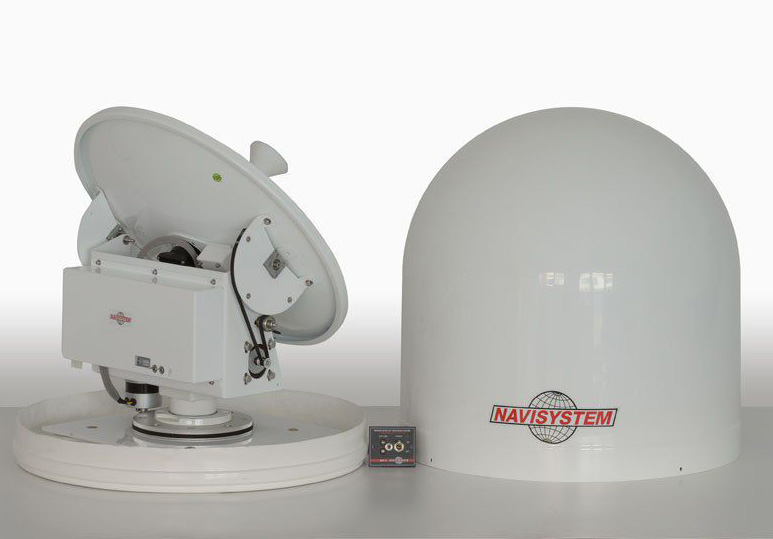

Recommended for 13-18 mt (35-55 feet) boats The MST 55HST is contained in a "radome" of only 58 cm (23") and it allows to take the best advantage of the more advanced satellite services such as TV sat, Internet, weather and Sat Com. The automatic polarizer is standard along with other accessories.The MST 55HST is at the moment the smallest antenna of its range on which one can install a complete series of Navisystem accessories.
Recommended for 13-18 mt (35-55 feet) boats The MST 55HST is contained in a "radome" of only 58 cm (23") and it allows to take the best advantage of the more advanced satellite services such as TV sat, Internet, weather and Sat Com. The automatic polarizer is standard along with other accessories.The MST 55HST is at the moment the smallest antenna of its range on which one can install a complete series of Navisystem accessories.
| Weight Kg | 25 |
| Radome diameter cm | 58 |
| Radome height cm | 65 |
| Power | 110 or 220 V AC |
| Average power input | 45W |
| Peak power input | 70W |
| Max. relative speed | 60 Nodi |
| Dish diameter cm | 82 |
| Antenna gain @12GHz | 38.5db |
| Min. E.I.R.P. auto mode | 45-46db |
| Control on | 4 axis |
MST65HST
Recommended for 17-25 mt (50-80 feet) boats MST 65 at the moment is the best solution between dimension and performance, with a parabolic reflector of 65 cm (26") and a "radome" of only 70 cm (28"). The automatic polarizer is standard along with other accessories. The company's choice, oriented for a slightly larger parabola in respect to international standards, has been revealed fundamental for the technical quality of the entire system. It is capable of ensuring service with the HDTV television satellites, Internet, telephone and reception of weather data.
Recommended for 17-25 mt (50-80 feet) boats MST 65 at the moment is the best solution between dimension and performance, with a parabolic reflector of 65 cm (26") and a "radome" of only 70 cm (28"). The automatic polarizer is standard along with other accessories. The company's choice, oriented for a slightly larger parabola in respect to international standards, has been revealed fundamental for the technical quality of the entire system. It is capable of ensuring service with the HDTV television satellites, Internet, telephone and reception of weather data.
| Weight Kg | 32 |
| Radome diameter cm | 70 |
| Radome height cm | 80 |
| Power | 110 or 220 V AC |
| Average power input | 40W |
| Peak power input | 60W |
| Max. relative speed | 60 Nodi |
| Dish diameter cm | 65 |
| Antenna gain @12GHz | 37db |
| Min. E.I.R.P. auto mode | 48-49db |
| Control on | 4 axis |
MST75HST
Recommended for 23-30 mt (70-100 feet) boats MST 75 was born to travel around the world along with other larger sizes. Its characteristics make it unique. The automatic polarizer is standard along with other accessories. Compact and fast, it assures a good signal even in the most adverse weather conditions. It assures reception of HDTV satellites.
Recommended for 23-30 mt (70-100 feet) boats MST 75 was born to travel around the world along with other larger sizes. Its characteristics make it unique. The automatic polarizer is standard along with other accessories. Compact and fast, it assures a good signal even in the most adverse weather conditions. It assures reception of HDTV satellites.
| Weight Kg | 38 |
| Radome diameter cm | 81 |
| Radome height cm | 87 |
| Power | 110 or 220 V AC |
| Average power input | 45W |
| Peak power input | 70W |
| Max. relative speed | 60 Nodi |
| Dish diameter cm | 72 |
| Antenna gain @12GHz | 38db |
| Min. E.I.R.P. auto mode | 46-47db |
| Control on | 4 axis |
MST85HST
Recommended for 24-35 mt (80-115 feet) boats. Recommended for mega yachts. With the MST 85, we have an antenna which has an 85 cm (33") parabola found inside a 92 cm (36") in diameter "radome!" Showing the ideal combination between technology of the big antennas and its contained encumbrance. Among the possibilities offered by the antenna, it has the capacity to operate in the USA and in Europe, thanks to the presence of a double LNB option. The automatic polarizer is standard along with other accessories. This is the smallest antenna for the megayachts, it ensures reception of HDTV satellites.
Recommended for 24-35 mt (80-115 feet) boats. Recommended for mega yachts. With the MST 85, we have an antenna which has an 85 cm (33") parabola found inside a 92 cm (36") in diameter "radome!" Showing the ideal combination between technology of the big antennas and its contained encumbrance. Among the possibilities offered by the antenna, it has the capacity to operate in the USA and in Europe, thanks to the presence of a double LNB option. The automatic polarizer is standard along with other accessories. This is the smallest antenna for the megayachts, it ensures reception of HDTV satellites.
| Weight Kg | 40 |
| Radome diameter cm | 92 |
| Radome height cm | 96 |
| Power | 110 or 220 V AC |
| Average power input | 45W |
| Peak power input | 70W |
| Max. relative speed | 60 Nodi |
| Dish diameter cm | 82 |
| Antenna gain @12GHz | 38.5db |
| Min. E.I.R.P. auto mode | 45-46db |
| Control on | 4 axis |
MST95HST
Recommended for 30-40 mt (100-125 feet) boats. Recommended for mega yachts. With MST 95, Navisystem proposes an antenna capable of transmitting and receiving by satellite being able to depend on the highest performance levels. Mechanical qualities makes it adaptable to instruments which are used in the most important cruises. The parabola's 95 cm (37") diameter makes it always operable effectively even in the worst weather conditions. The automatic polarizer is standard along with other accessories. A line of optional accessories can further enhance this antenna, makes it a unique product of its kind. It assures reception of the HDTV satellites.
Recommended for 30-40 mt (100-125 feet) boats. Recommended for mega yachts. With MST 95, Navisystem proposes an antenna capable of transmitting and receiving by satellite being able to depend on the highest performance levels. Mechanical qualities makes it adaptable to instruments which are used in the most important cruises. The parabola's 95 cm (37") diameter makes it always operable effectively even in the worst weather conditions. The automatic polarizer is standard along with other accessories. A line of optional accessories can further enhance this antenna, makes it a unique product of its kind. It assures reception of the HDTV satellites.
| Weight Kg | 48 |
| Radome diameter cm | 105 |
| Radome height cm | 110 |
| Power | 110 or 220 V AC |
| Average power input | 45W |
| Peak power input | 70W |
| Max. relative speed | 60 Nodi |
| Dish diameter cm | 96 |
| Antenna gain @12GHz | 39db |
| Min. E.I.R.P. auto mode | 43-44db |
| Control on | 4 axis |
MST120HST
MST 120 HST is suitable for megayachts over 50 metres or cruise ships, commercial or military, because of his features. The automatic polarizer is standard along with other accessories. This model is created for the boat that has no limits in terms of distances and weather conditions.
MST 120 HST is suitable for megayachts over 50 metres or cruise ships, commercial or military, because of his features. The automatic polarizer is standard along with other accessories. This model is created for the boat that has no limits in terms of distances and weather conditions.
| Weight Kg | 130 |
| Radome diameter cm | 130 |
| Radome height cm | 140 |
| Power | 110 or 220 V AC |
| Average power input | 75W |
| Peak power input | 90W |
| Max. relative speed | 50 Nodi |
| Dish diameter cm | 120 |
| Antenna gain @12GHz | 41.3db |
| Min. E.I.R.P. auto mode | 41.5-42.5db |
| Control on | 4 axis |
MST135HST
This model is suggested for megayacht over 70 metres and commercial, cruise and military boats. The automatic polarizer is standard along with other accessories. It has been studied to operate both in transmission and in reception of KU band.
This model is suggested for megayacht over 70 metres and commercial, cruise and military boats. The automatic polarizer is standard along with other accessories. It has been studied to operate both in transmission and in reception of KU band.
| Weight Kg | 150 |
| Radome diameter cm | 145 |
| Radome height cm | 148 |
| Power | 110 or 220 V AC |
| Average power input | 75W |
| Peak power input | 90W |
| Max. relative speed | 50 Nodi |
| Dish diameter cm | 135 |
| Antenna gain @12GHz | 43db |
| Min. E.I.R.P. auto mode | 40-41db |
| Control on | 4 axis |
MST150HST
This model is suggested for megayacht over 70 metres and commercial, cruise and military boats. MST 150 HST is the biggest antenna of Navisystem brand and it has been studied to operate both in transmission and in reception of C and KU band. The automatic polarizer is standard along with other accessories.

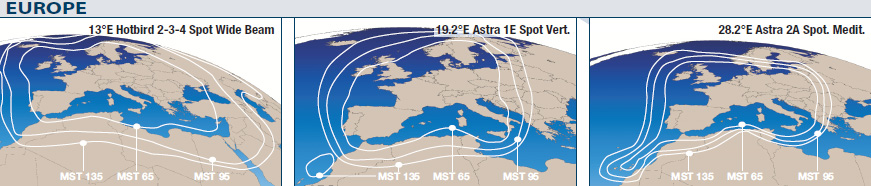

World Coverage
This model is suggested for megayacht over 70 metres and commercial, cruise and military boats. MST 150 HST is the biggest antenna of Navisystem brand and it has been studied to operate both in transmission and in reception of C and KU band. The automatic polarizer is standard along with other accessories.
| Weight Kg | 180 |
| Radome diameter cm | 170 |
| Radome height cm | 156 |
| Power | 110 or 220 V AC |
| Average power input | 75W |
| Peak power input | 100W |
| Max. relative speed | 50 Nodi |
| Dish diameter cm | 150 |
| Antenna gain @12GHz | 45db |
| Min. E.I.R.P. auto mode | 39-40.5db |
| Control on | 4 axis |

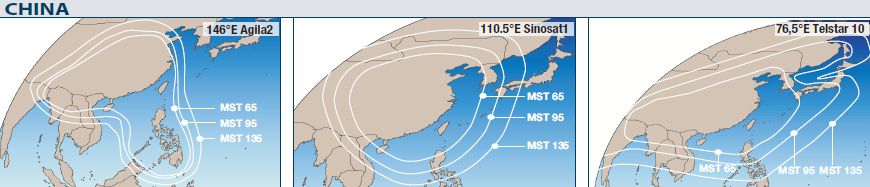

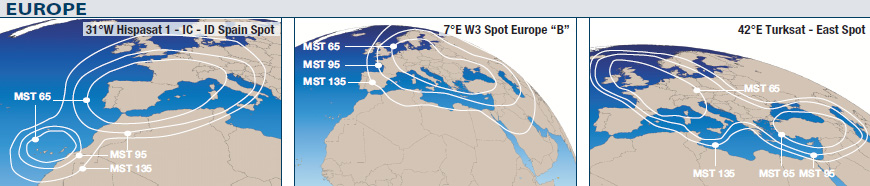

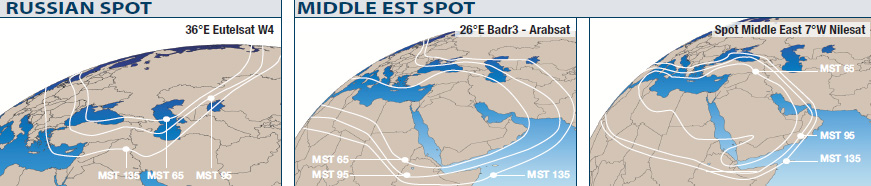

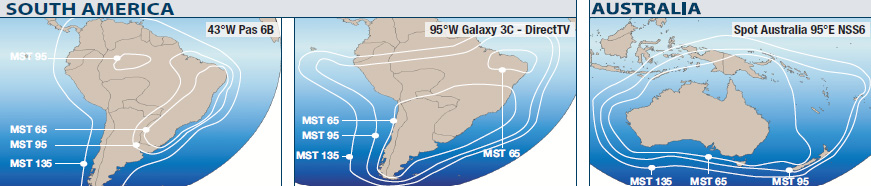

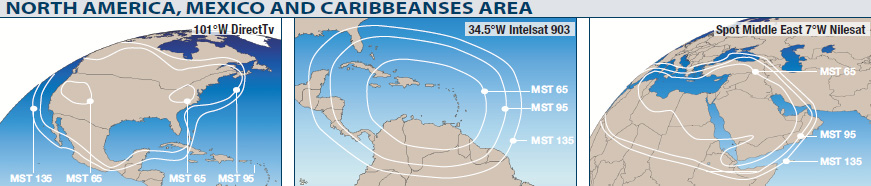

This coverage map is intended ad a guide to reception and the actual coverage area and signal strenght may vary.
Also, signal strenght and reception within the footprint may be affected by weather.
Technical Detailed Lists
MST Antennas performances

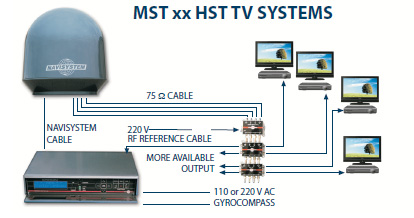

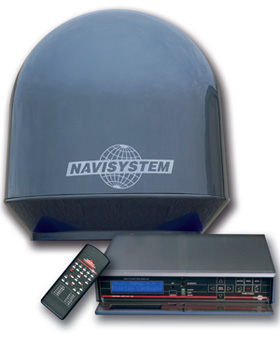

• Navilynk: only a cable between antenna and control unit. Interactivity with the on board network .
• Amagnetic kit: against the magnetic interferences. "Tracking" in bad conditions too.
• NaviBer Technology: to identify the chosen satellite. • Auto-Polarizer: to receive in linear polarization every kind of international satellite.
• GPS "On Board": serial accessory.
• Remote Control: 12 satellitites serial accessory.
• Navilynk: only a cable between antenna and control unit. Interactivity with the on board network .
• Amagnetic kit: against the magnetic interferences. "Tracking" in bad conditions too.
• NaviBer Technology: to identify the chosen satellite. • Auto-Polarizer: to receive in linear polarization every kind of international satellite.
• GPS "On Board": serial accessory.
• Remote Control: 12 satellitites serial accessory.
MST Optionals
• Colour: the antenna and the control unit colour can be chosen to be the best coupling with the boat.
• Bidirectional internet kit: only one antenna for TV and internet
• Sat Phone kit: only one antenna for TV and sat phone.
• Digital meteo kit: million of free meteo MegaByte from space to PC on board.
• Dual Polarization kit: two polarizations (linear and circular) for an international antenna
• Digital terrestrial kit: for the terrestrial DVB-T channels reception
• DirectTv DLA kit: for the centre and south America reception.
• DirecTv kit: for the Directv reception
• Kit RX for 36 E: for the reception in circular polarization to Russia.
• Colour: the antenna and the control unit colour can be chosen to be the best coupling with the boat.
• Bidirectional internet kit: only one antenna for TV and internet
• Sat Phone kit: only one antenna for TV and sat phone.
• Digital meteo kit: million of free meteo MegaByte from space to PC on board.
• Dual Polarization kit: two polarizations (linear and circular) for an international antenna
• Digital terrestrial kit: for the terrestrial DVB-T channels reception
• DirectTv DLA kit: for the centre and south America reception.
• DirecTv kit: for the Directv reception
• Kit RX for 36 E: for the reception in circular polarization to Russia.

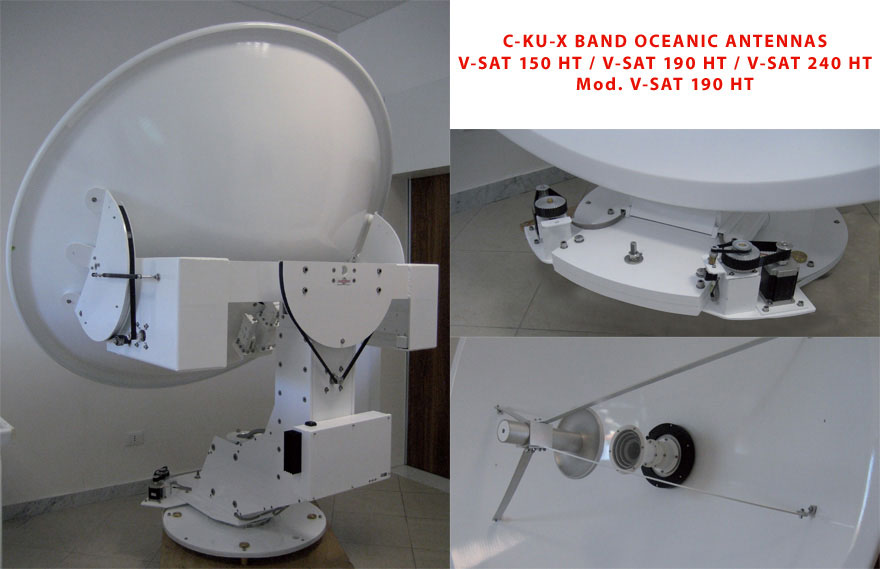

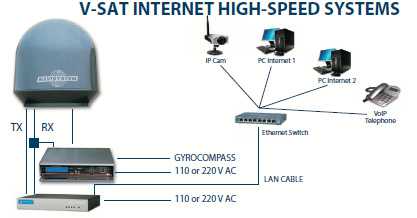

V-SAT Technical data (Broadband)
| Range of frequency | Ku |
| Transmission | Tx: 14.00/14.25 Ghz (standard) |
| Reception | Rx: 10.70/12.75 Ghz |
| VSWR Tx | <1.35 |
| Polarization | Linear V-H |
| Cross Polarizzazione | >30 db |
| Network Topology | Star (TDM/MF-TDMA) |
| Modulation | Downstream: BPSK, QPSK, 8PSK Upstream: BPSK, QPSK |
| SatCom interface | TxIF: Type-F 950-1200 MHz RxIF: Type-F 950-1700 MHz |
| Avalaible BUC power | 2 W (supporto BUCs fino a 8 W) |
| Data interfaces | LAN: Single 10/100 Ethernet, 802.1q VLAN RS-232: RJ45 (per GPS or console connection) |
| Protocols supported | TCP, UDP, ACL, ICMP, IGMP, RIP, NAT, DHCP, Local DNS caching, cRTP and GRE |

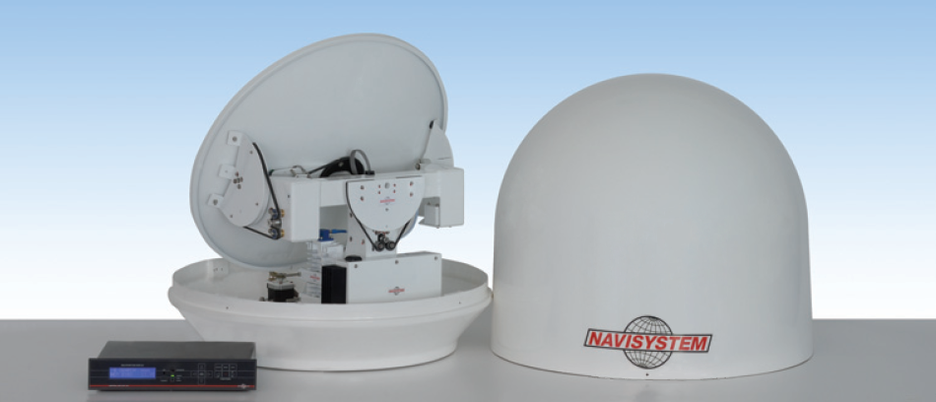

MST - V-SAT antenna specifications
| Azimuth range | 700° |
| Elevation range | 0° + 85° |
| Rotation speed max azimuth | >70°/sec |
| Rollio e becch. stabilizzazione | +/-20° |
| Roll and pitch stabilization | >70°/sec |
| GPS data (input) 1 PPS | NMEA183 (GPGGA, GPGLL, GPRNC) |
| Gyrocompass (input) 10 PPS | NMEA183 (HEHDT, HCHDT) |
| Dish type | Cassegrain double reflection prime F. |
| LNB reception (MST) | 4 uscite lineari (+ 2 uscite circ. optional) |
| Allowed reception (MST) | Vertical/Horizontal and Circular |
| LNB univ. Frequenza oscill. locale (MST) | 9750 ÷ 10600 MHz |
| Operating temperature | -20°C +80°C |
| Storage temperature | -40°C +85°C |
| Humidity | 100% |

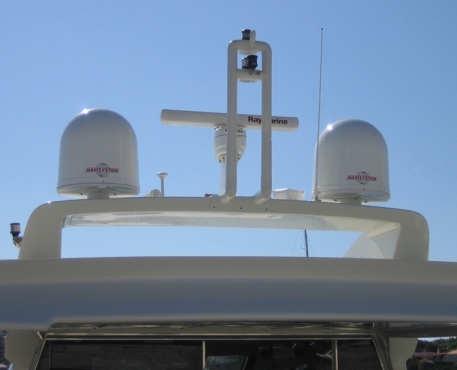

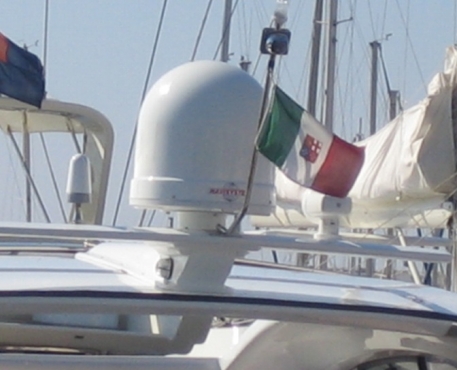

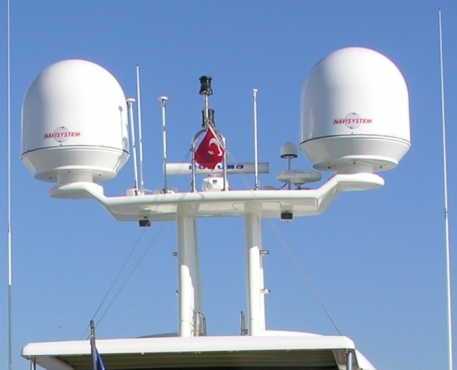

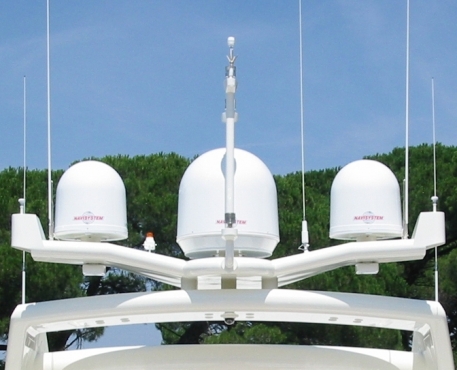

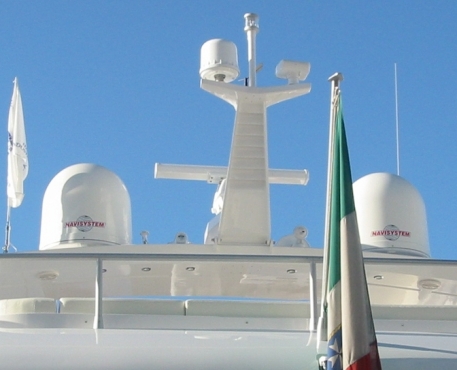

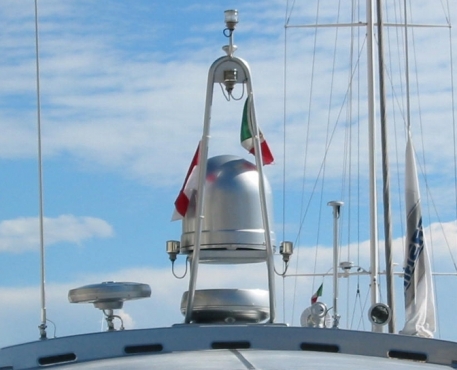

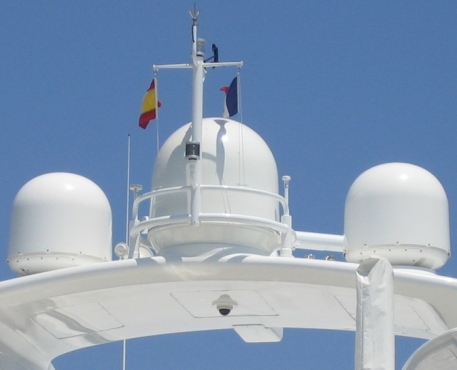

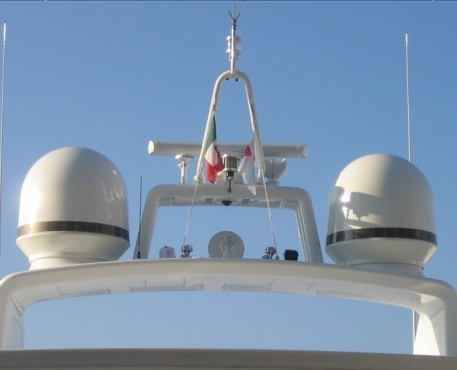

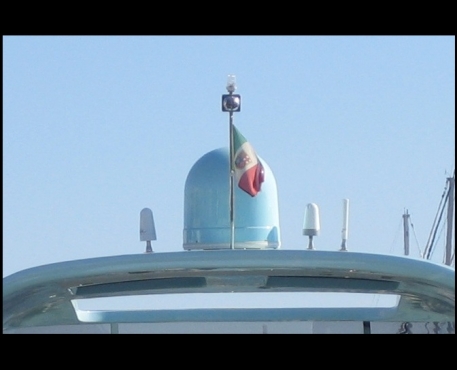

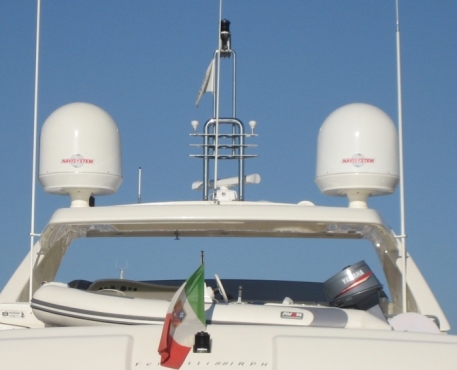

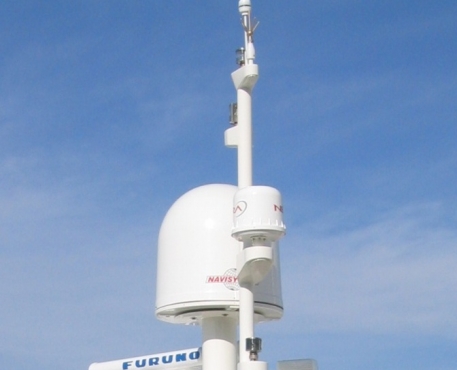

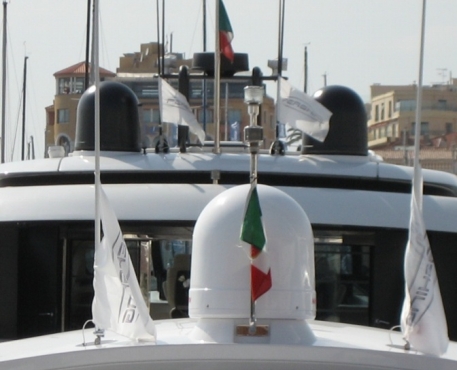

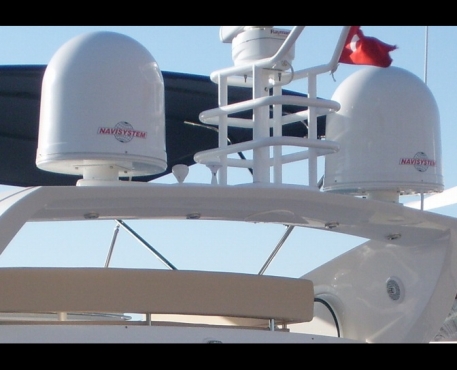

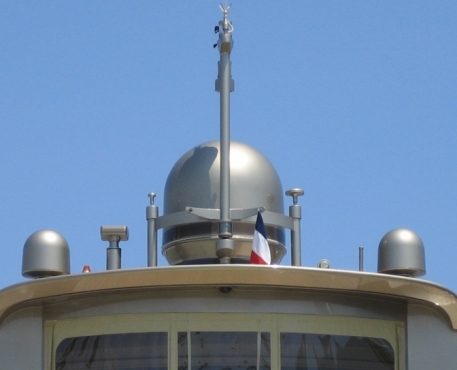

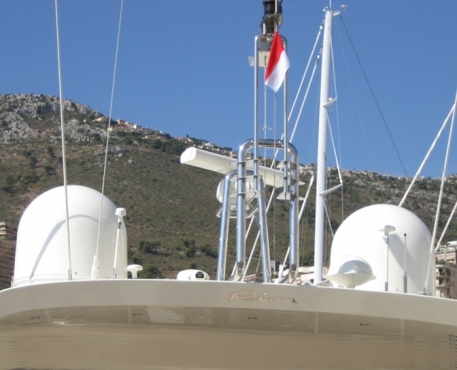

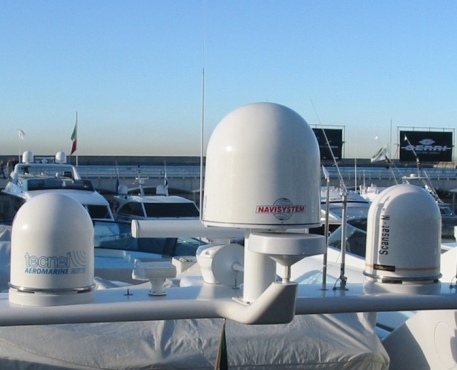

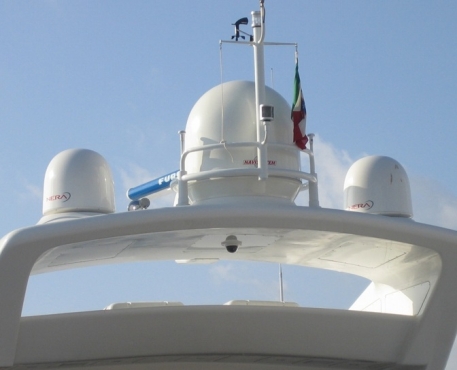

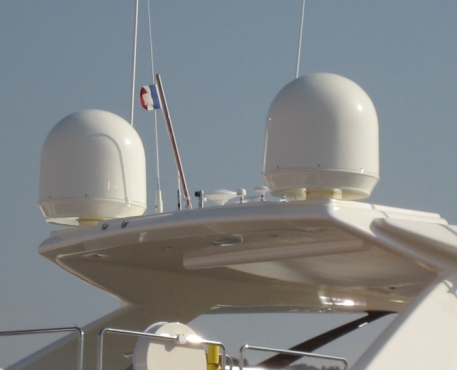

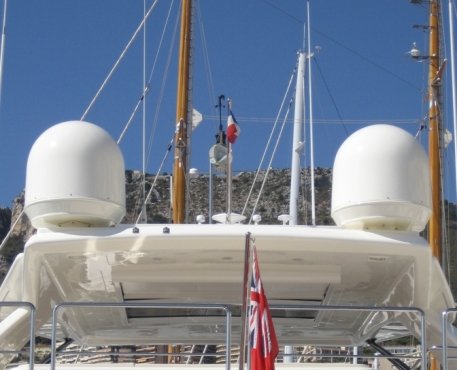

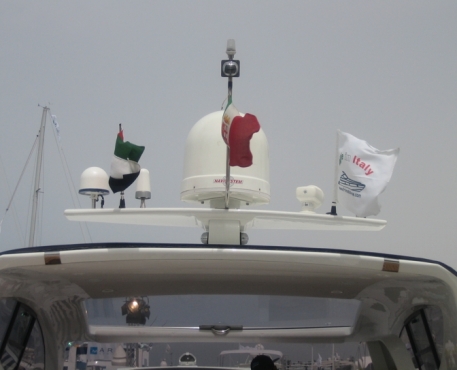

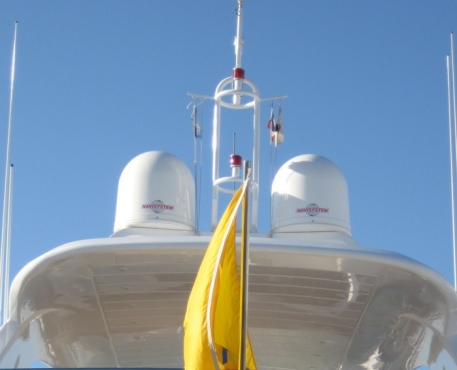

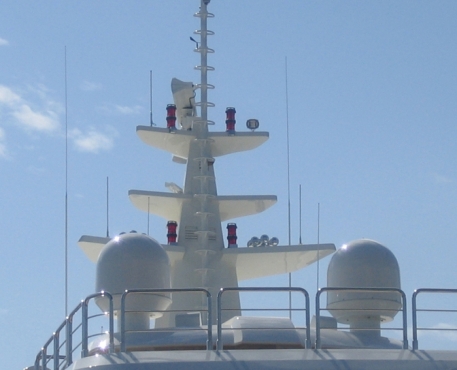

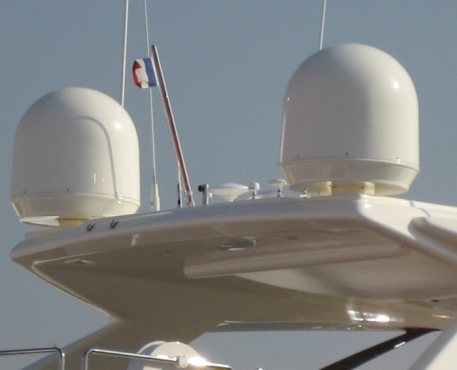

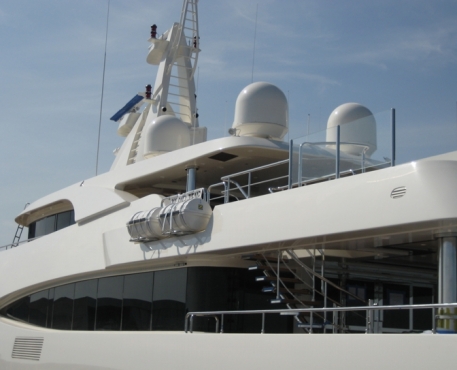

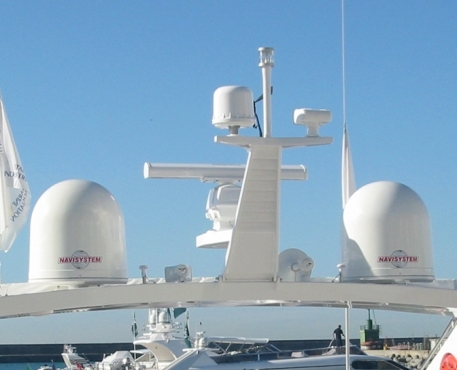

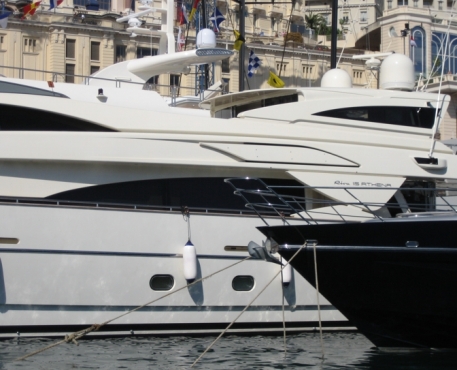

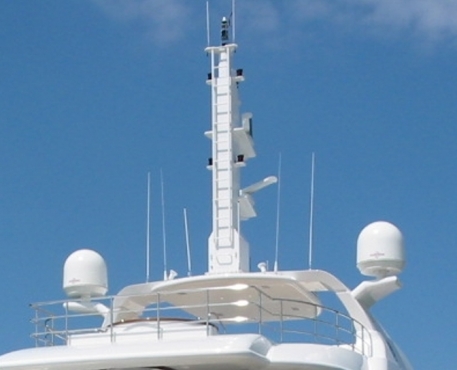

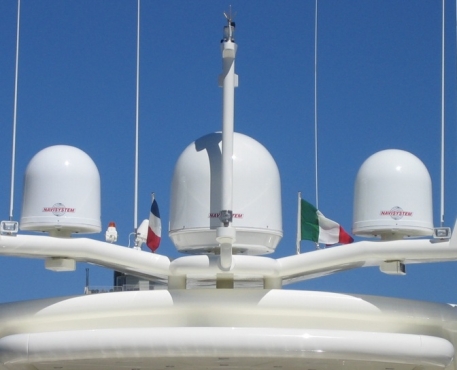

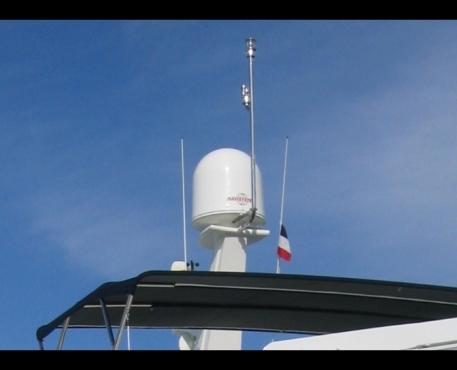

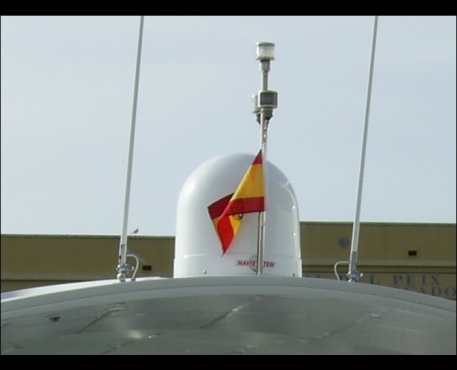

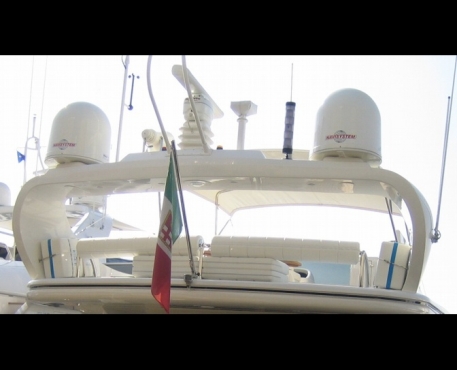

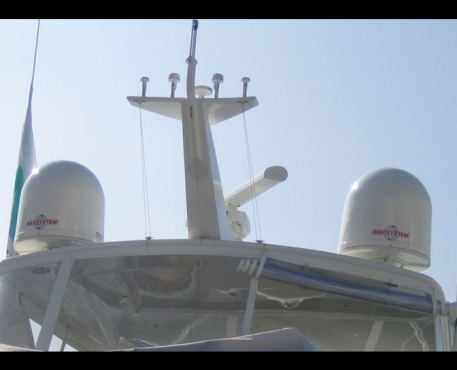

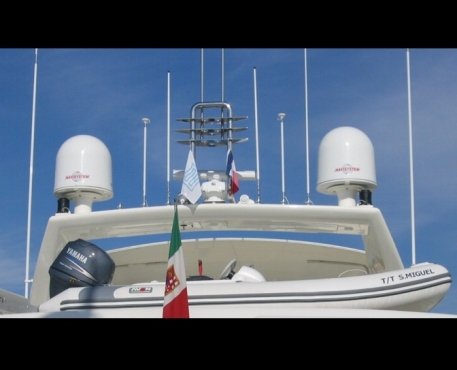

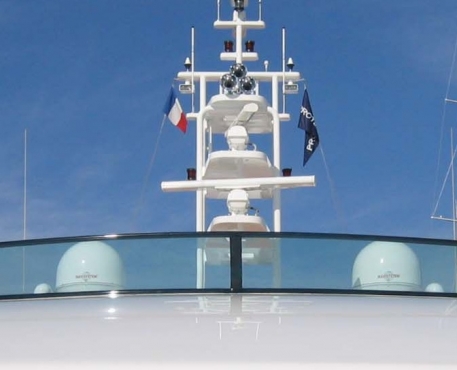

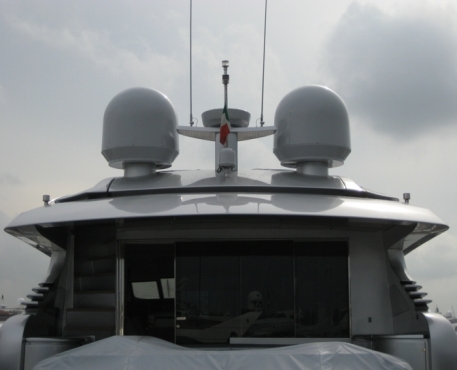

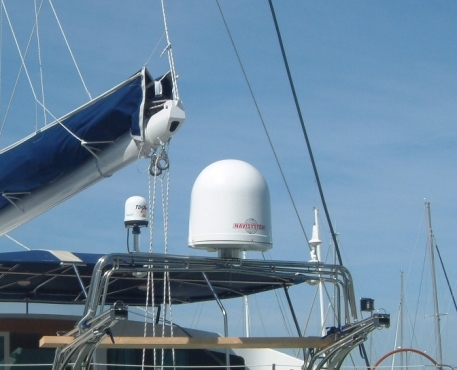

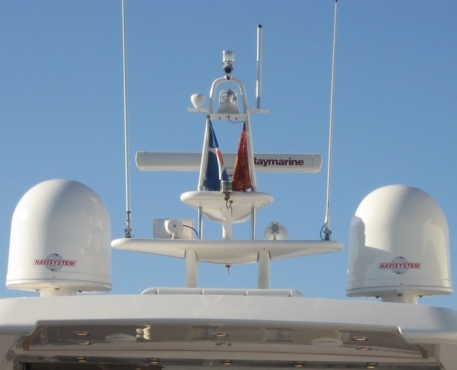

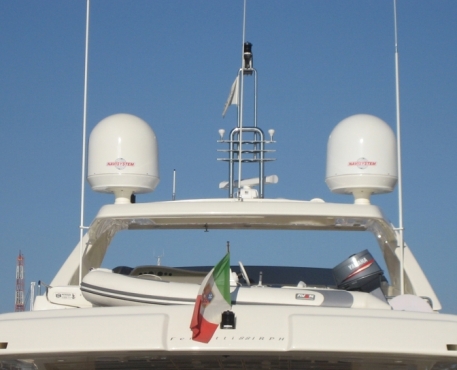

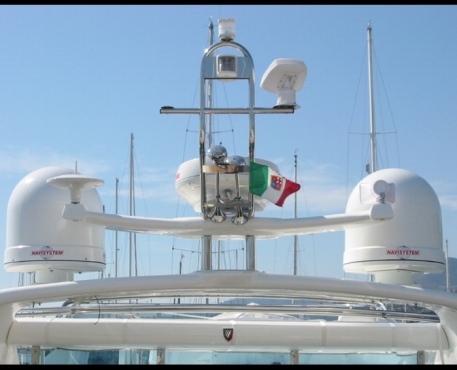

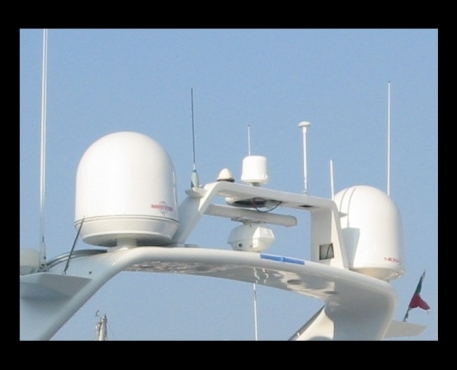

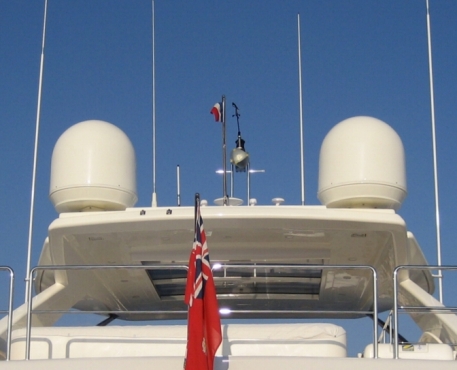

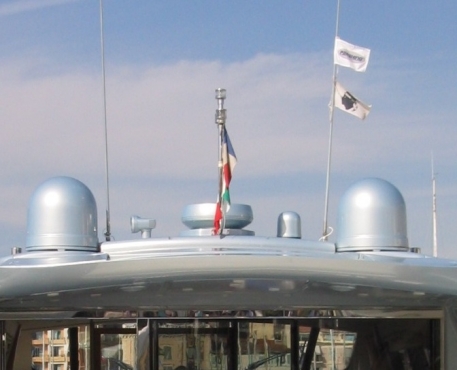

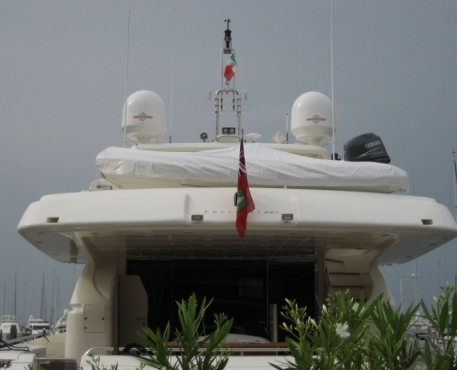

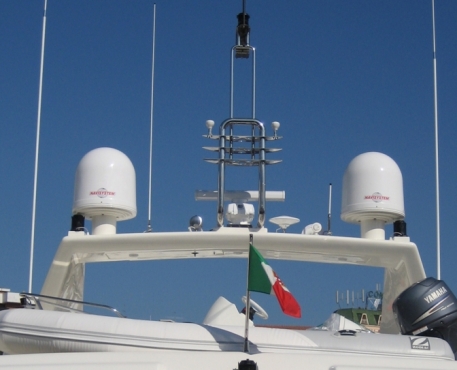

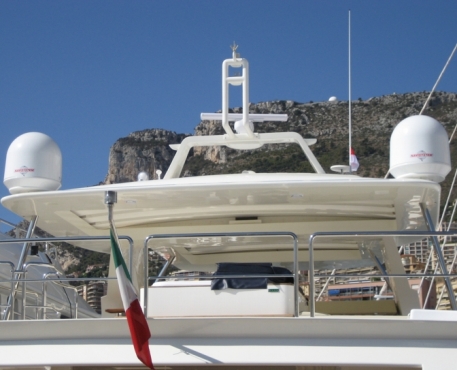

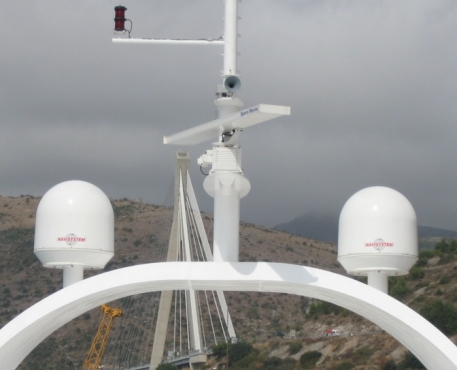

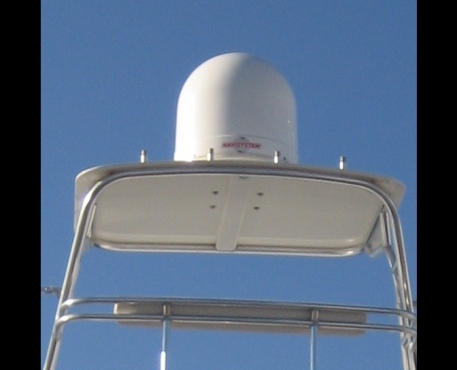

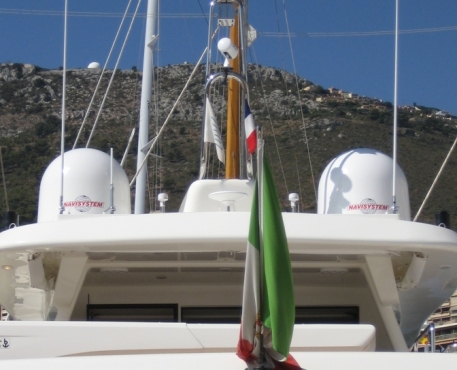

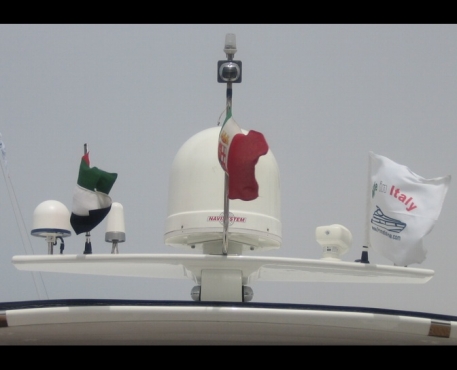

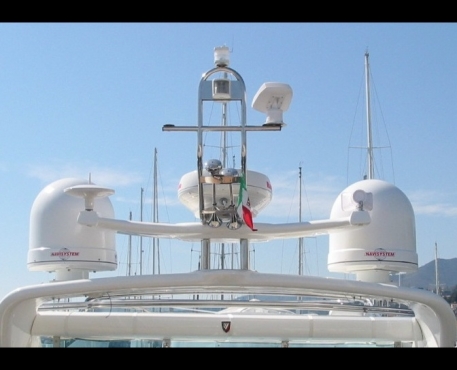

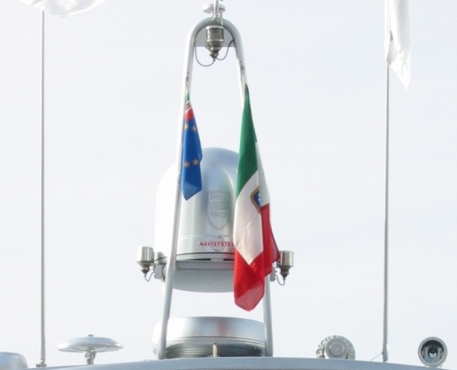

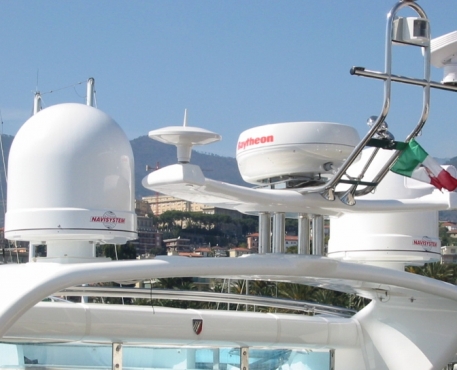

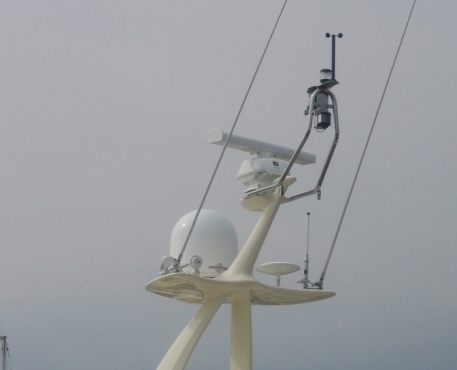

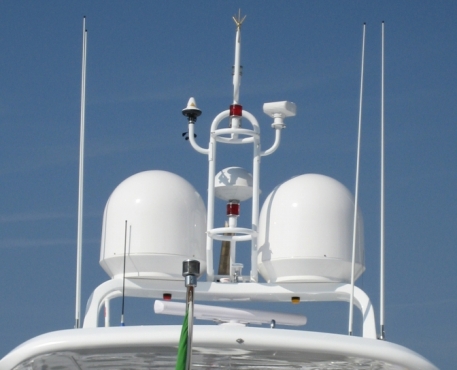

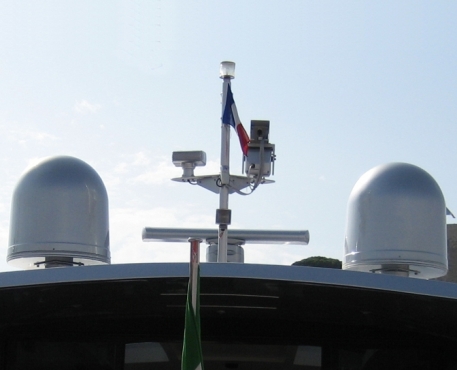

Referanslar (Azimuth - Pershing - Numarine - Ferreti - Sunseeker - Mangust - Dallapietaa)
